The incandescent C-lites shown on this page are designed around the Longer length telephone-type lamp bulbs. The extra length of bulb is Required to accommodate sufficient filament to handle voltages up to 120 Volts. This group of C-lites and the mating DL and DM single lampholders Provide rugged, dependable indicators and use a minimum of panel space. The CQ neon series is designed to match with the CM incandescents in The same lampholders.
C-Lites
for DL Series Lampholders
---------------------------------------------------------------------------------------------
The CL24 incandescent C-lites mate with the DL series lampholders with the D06, D09 or D25 lens caps. These C-lites package the pilot-lamp style telephone bulbs. Black anodized case the bulb end is exposed.
MS Number Configurations:
CL24-48PS MS18238-1
CL24-60PS MS18238-2
PART MARKING
ELDEMA – C – LITE – PART NUMBER – VOLTAGE AND MA.
C-Lites
for DM Series Lampholders
--------------------------------------------------------------------------------------------
The CM12 incandescent C-lites mate with the DM Series lampholders with the
D06, D09 or D25 lens caps. These C-lites employ rugged long life telephone lamps. Clear anodized case. The bulb end is exposed. The CM12 may also be used with the DL Holder with the D07 long lens cap where wide side visibility is required.

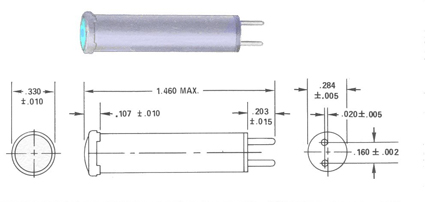

The CM65 incandescent C-lites mate with the DM series lampholders with the D06, D09 or D25 lens caps. These C-lites packaged the pilot-lamp type telephone bulbs. Clear anodized case with high-temperature frosted lens cap to diffuse the light.
PART MARKING
ELDEMA – C – LITE – PART NUMBER – VOLTAGE AND MA.

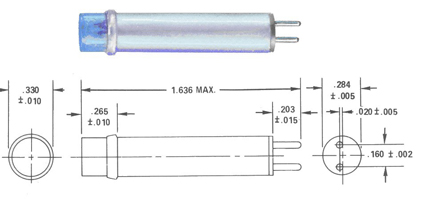

CQ
Series-Neon with Built-In Resistor
---------------------------------------------------------------------------------------------
The CQ series Neon C-lite have the neon lamp resistor built into the cartridge and mate with the DM series lamp-holders. Any of the lamp/resistor numbers offered in the CR or CN neon C-lites are available in the CQ series. Specify style-lens color, finish, lamp/resistor Number.
EXAMPLE: CQ03-WCS-N123, high brightness lamp for 110-125 Volt AC
operation with 33k resistor built in for 25,000 - hour life rating.
